Available in one size only: Large: 177-186cm with 29" wheel size.

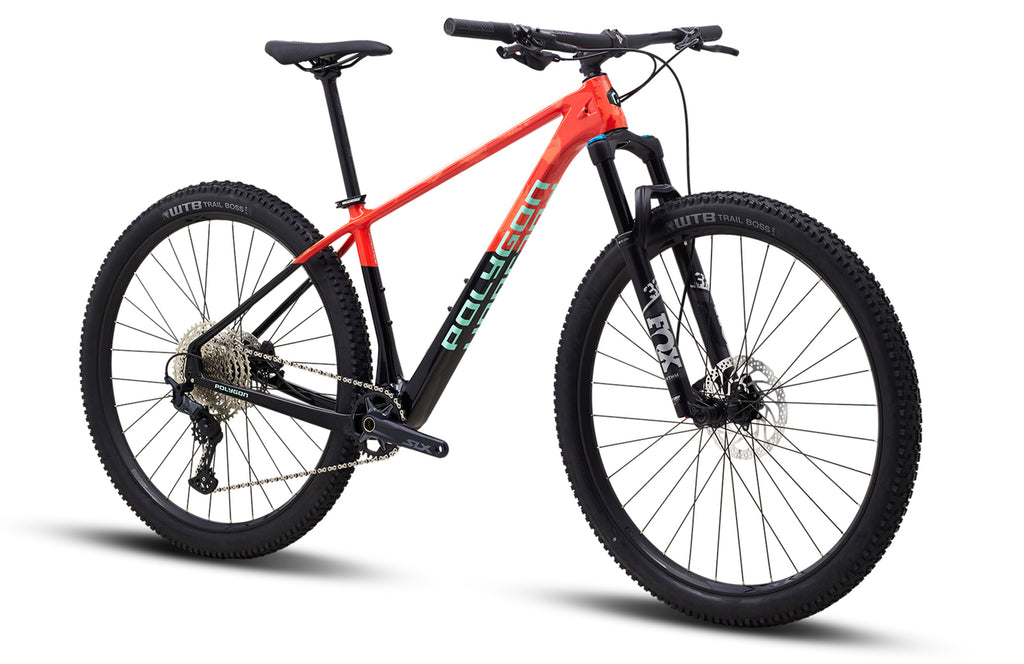

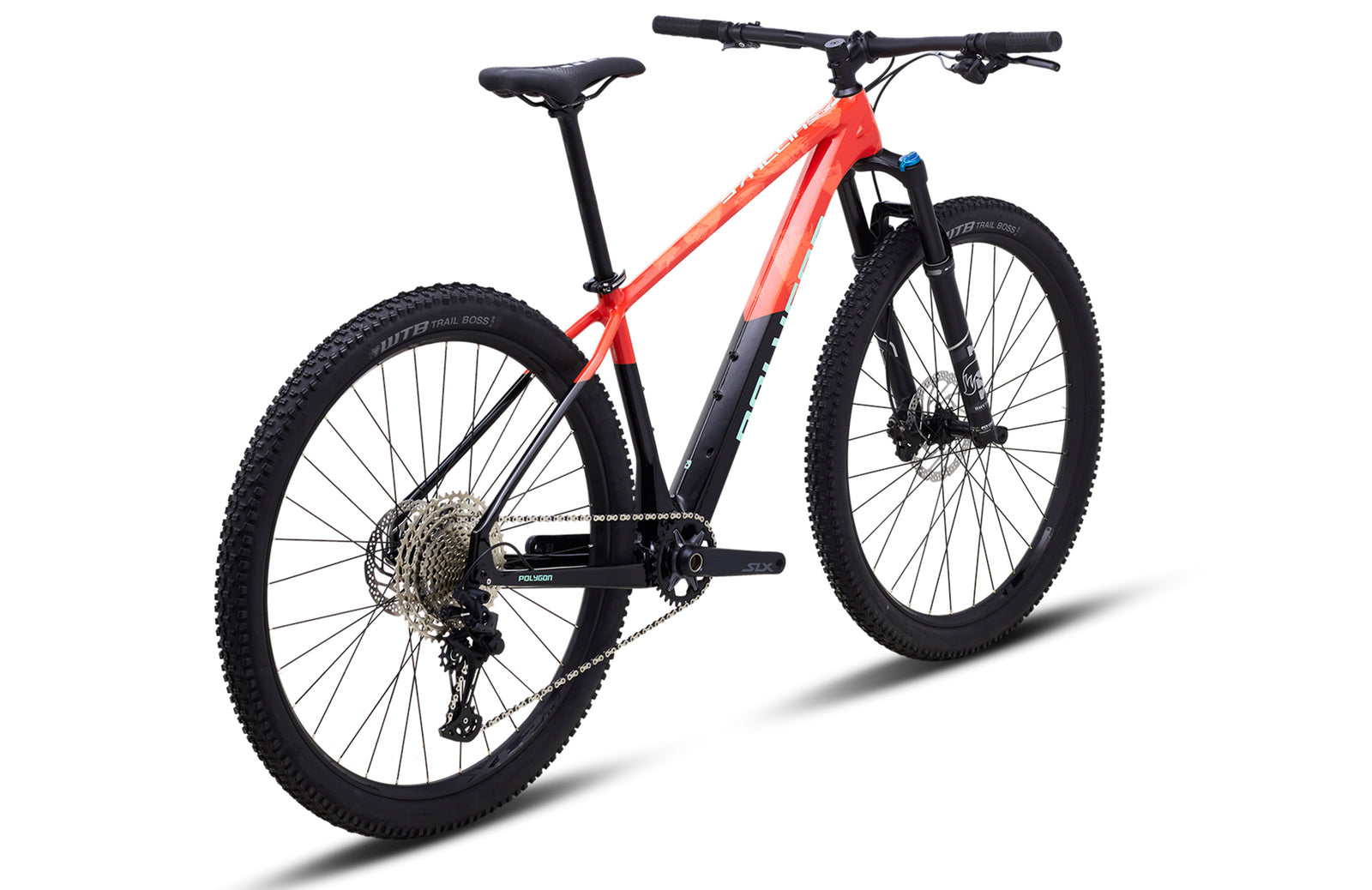

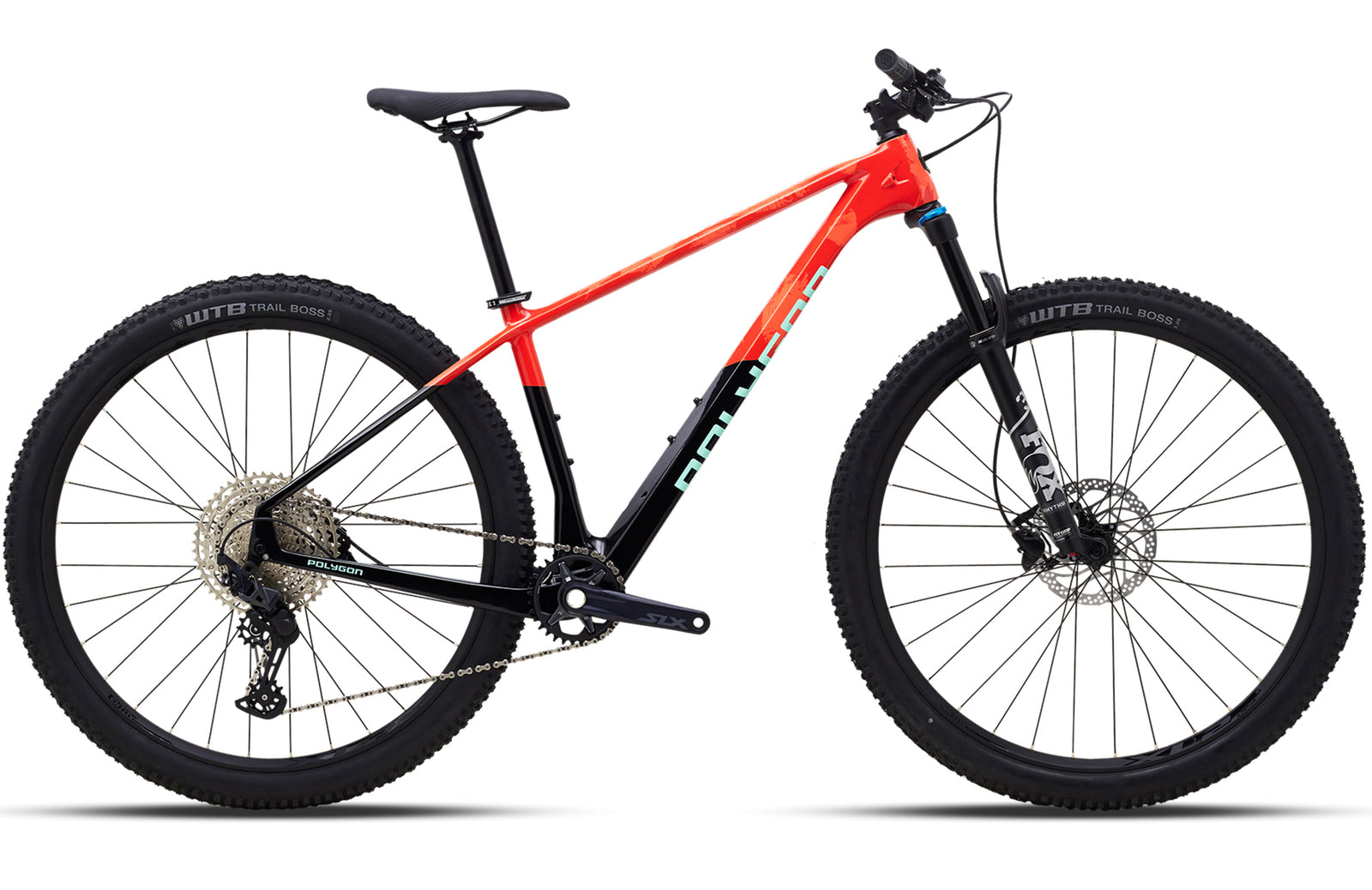

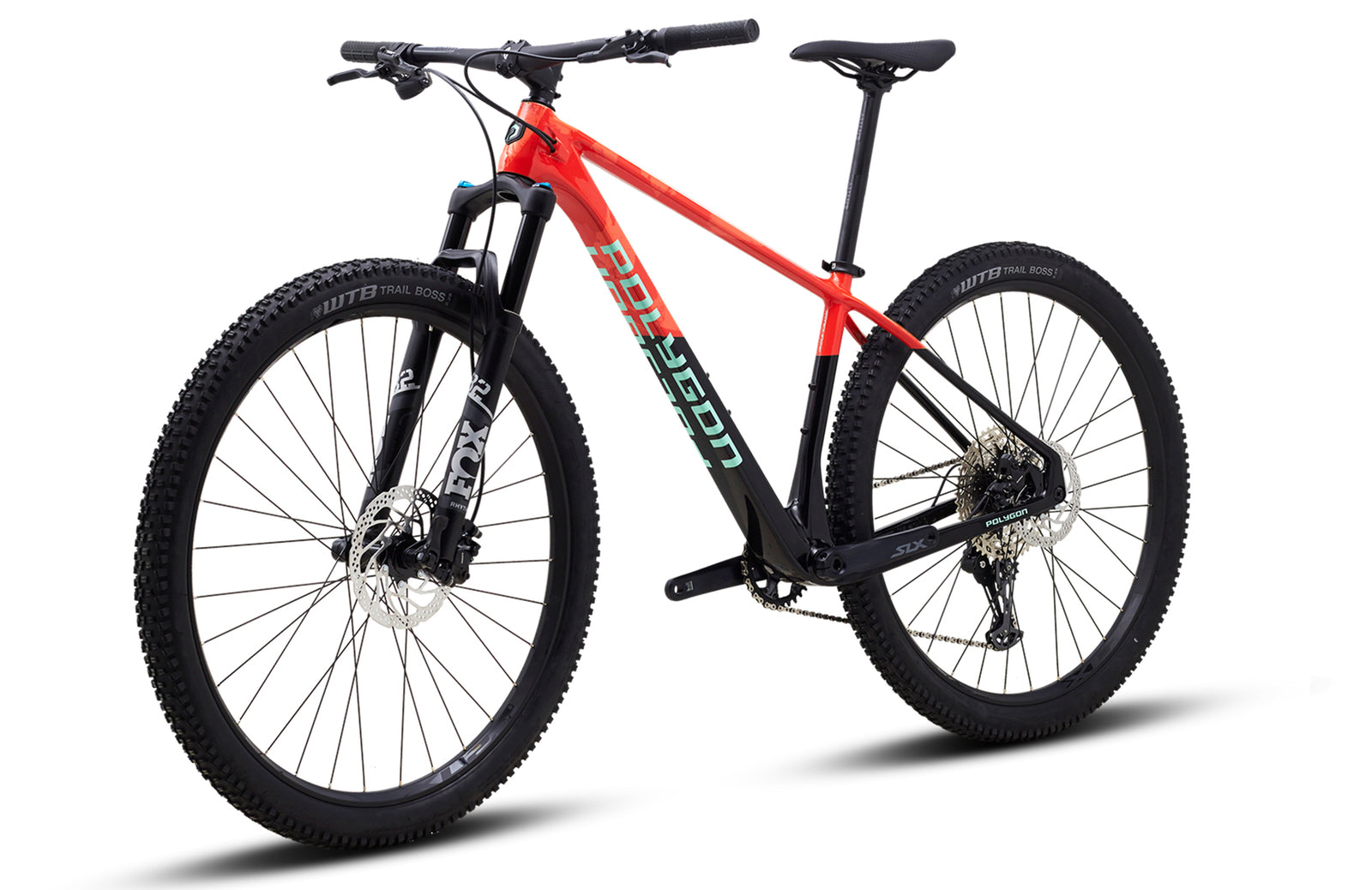

Polygon's Syncline C5 is built for riders who strive to climb fast, finish on the podium at XC Races, or want to explore the backcountry. The Syncline is ready to go fast and far with newfound confidence; let it take you to new levels.



TUNED FOR SPEED

The Syncline Carbon frames are tuned to surge forward on every pedal stroke. The Syncline begs to be ridden hard, a laterally stiff frame surrounded with light and efficient components.

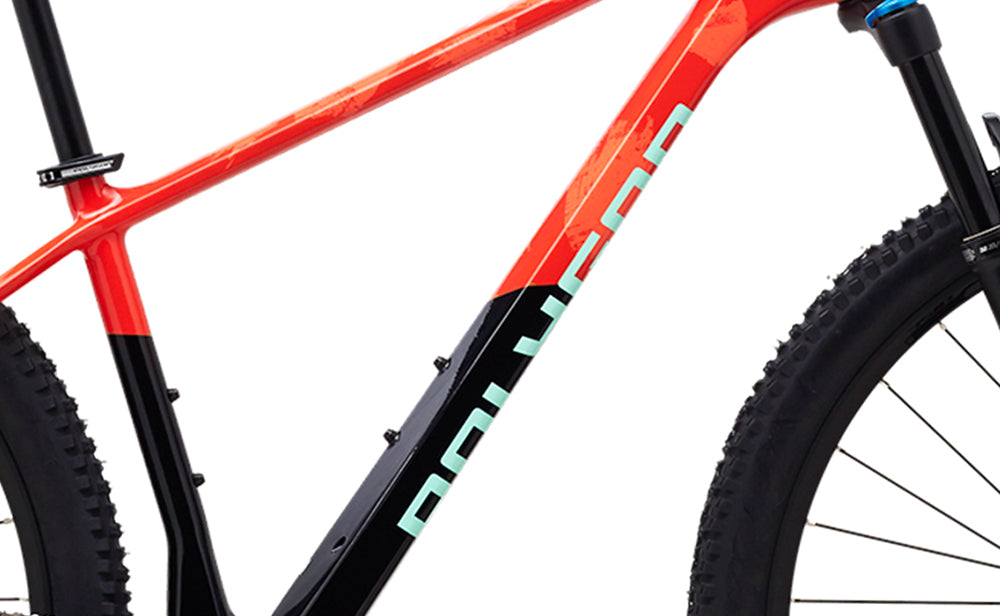

TWO DRINK BOTTLES

While some bikes don't have enough room for one drink bottle, the Syncline has enough room to fit 2 full-size bottles so you can explore until your heart is content.

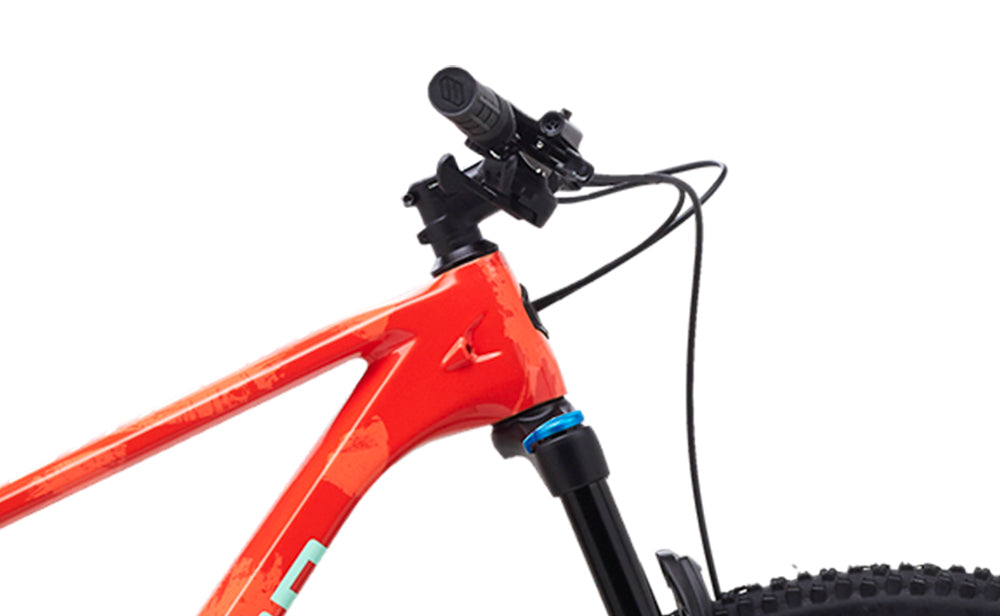

INTERNAL CABLE ROUTING

Internal cable routing doesn't just look good. It also prolongs your cable's life. Less time spent working on your bike means more time riding.

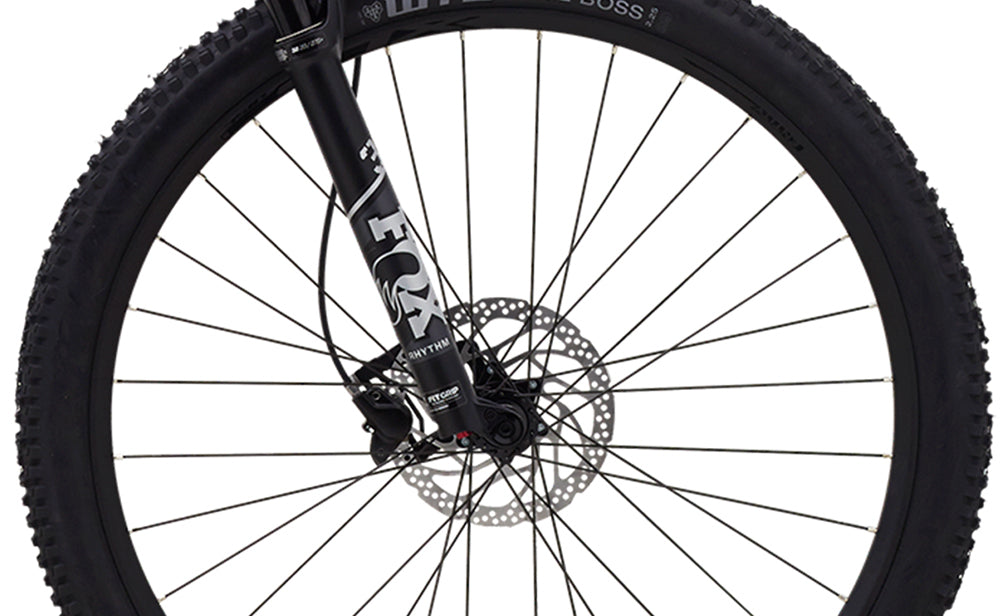

FOX 32 RHYTHM FORK 120MM

Fox's 32 Rhythm 120mm forks have been developed by racers to push the limits of a lightweight XC fork. Riders will experience a new level of control with these forks.

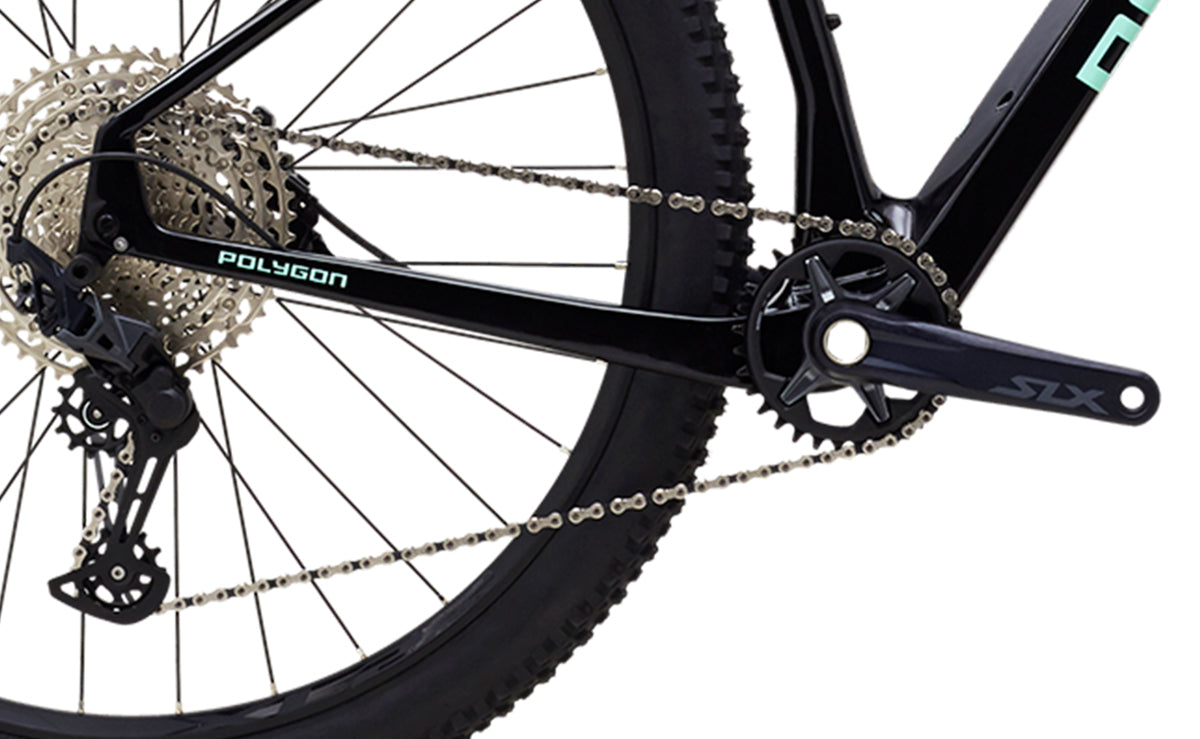

SHIMANO SLX M7100 1 X 12 DRIVETRAIN

Shimano's SLX 1 x 12 drivetrain offers market-leading shifting performance for an amazing value. Riders will experience crisp and precise shifting in all conditions through the wide range of gears.

SHIMANO WIDE-RANGE CASSETTE

Shimano's 10-51 tooth cassette offers a massive range of gears out back, so you will be able to climb any mountain with simple shifting and less fuss so you can enjoy the ride more.

SHIMANO MT-401 HYDRAULIC DISC BRAKES

Shimano hydraulic brakes offer a lot of power with precise control within a small, lightweight package.

FRONT AND REAR THRU-AXLES

Front and rear thru-axles add extra stiffness to the frame and wheel interface. With a simple Allen key, you can have your wheel out in seconds.

FRAME	ACX XC Performance Carbon Fibre, Pressfit BB92, Internal Cable Route, Boost 12x148mm Rear Thru-Axle
FORK	Fox 32 Rhythm 120mm Travel, Rebound & Sweep Adjustment, Tapered, Boost Thru-Axle 15x110mm
HANDLEBAR	Entity Xpert Alloy 740mm
STEM	Entity Xpert, Alloy 60mm
HEADSET	FP-H869 Tapered

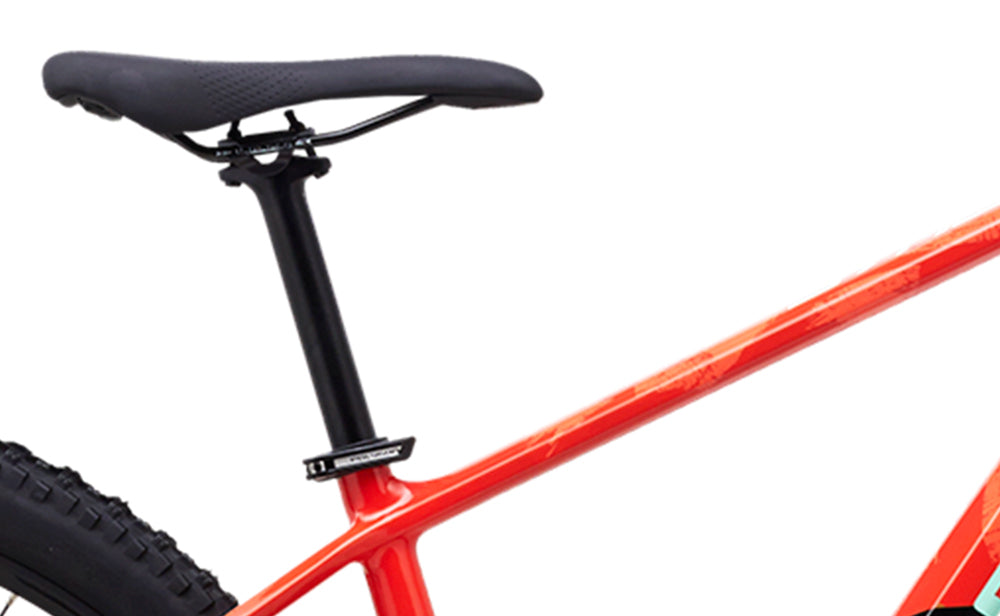

SADDLE	Entity Void, Steel Rail
SEATPOST	Entity Expert, Zero Offset, 27.2x350mm
CRANKSET	Shimano SLX FC-M7100 Chainwheel 32T
BOTTOM BRACKET	Shimano Press-Fit Bb
CHAIN	KMC X12 12 Speed
CASSETTE SPROCKET	Sunrace MZ-800, 11-51T, 12-Speed*** Shimano CS-M6100, 10-51T, 12-Speed***
REAR DERAILLEUR	Shimano SLX RD-M7100 Shadow Plus 12 Speed
SHIFTING LEVER	Shimano SLX SL-M7100
BRAKE F/R	Shimano BR-MT401
BRAKE ROTOR	Shimano SM-RT30
TYRE	WTB Trail Boss 27.5 x 2.25/29 x 2.25 *
RIM	Entity XL2 Disc, Double Wall Alloy Rims, 30mm Internal Width, Tubeless Tape Installed **
HUB FRONT	Shimano HB-MT400, Thru Axle 15x110mm, 32h Center-Lock
HUB REAR	Novatec D462SB, 12x148mm 32h, Center Lock
VALVE TYPE	French Valve (Presta)
PEDALS	Alloy Flat Pedal
COLOUR	Red/Black
WEIGHT	11.9 kg
TECHNICAL INFORMATION
HEADSET SPEC	IS 42/28.6 | IS 52/40
SPOKES FRONT	14g Steel, Drive: 294mm, Non-Drive: 296mm
SPOKES REAR	14g Steel, Drive: 294mm, Non-Drive:296mm
FRONT AXLE	Fox Racing Shox Fork 15x100mm QR Thru Axle
REAR AXLE	Thru Axle QR63-M BK 12x174mm Bolt On
DISC SPEC	160mm(R)/180mm(F)
