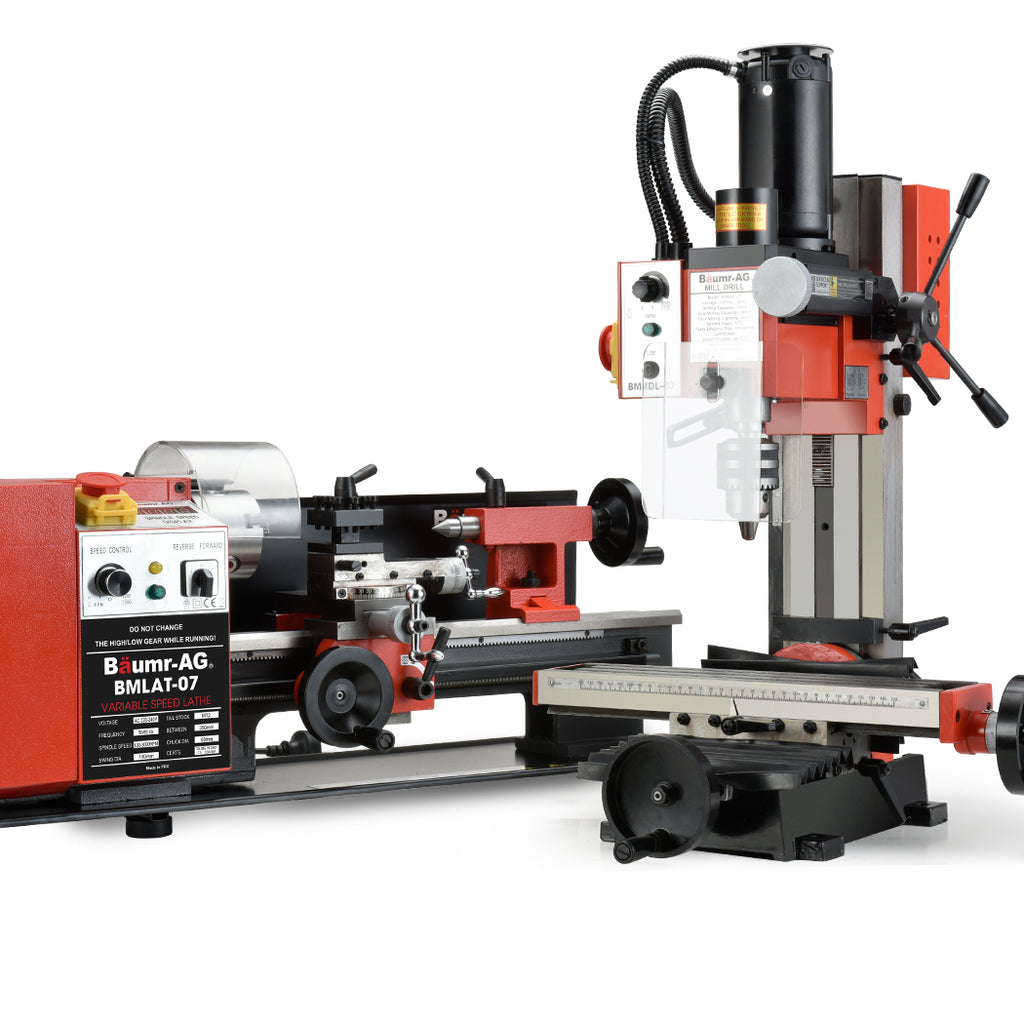

BAUMR-AG 600W Mini Metal Lathe and 350W Mill Drill Press Machine Combo


Price:
Sale price$2,821.28
Stock:
In stock

Estimate shipping

Description

The Baumr-AG Ultimate Mini Metal Lathe and Mill Drill package is the perfect combination of tools for model makers, toolmakers and weekend machinists who are looking for versatile and reliable machines that dont take up too much real estate in the workshop.
These are powerful, sturdy, heavy-duty units with cast iron bodies. Both machines have a high and low gear and infinitely variable speeds right up to 2500rpm.
--------------------
Mini Metal Lathe
With high and low gear and infinitely variable speeds right up to 3000rpm, this 7 x 14 mini metal lathe makes short work of drilling, cutting, threading and turning. It will also operate at all speeds in reverse, which makes left-hand threading an option. With 600W of power on tap and adjustable powerfeed, youll be making small parts, threaded parts, fittings and dies from brass, bronze, aluminium and steel with ease.
It has a fully-featured carriage, finely machined ways, self-centring 3-jaw chuck, a MT3 spindle taper and a MT2 tailstock taper and includes a thread range of 0.4-2.0mm (10 thread pitches). The 5/16-inch capacity tool post allows up to four cutting tools to be mounted at once for simple substitutions mid-project. The Baumr-AG has a chip tray splash guard and emergency stop button for optimal safety credentials. Plus, it also has a digital LCD display for accurate viewing of current RPM.

--------------------
Mini Mill Drill
With a 350W DC motor and geared drive theres no shortage of power on tap to effortlessly drill, deep mill and face mill! Theres a fine feed for milling and a coarse feed for drilling, and when accurate positioning of holes is required you can use the quick adjust depth limiter.

The precision machined working table has T-slots to facilitate clamping of workpieces of up to 300x200x200mm, and handwheels ensure precision movement of the X and Y axis within a thousands of an inch. The column can conveniently be tilted either side up to 45 degrees from vertical.
For optimal safety theres a transparent spindle guard, rubber ways chip guard and shut off switch. The Baumr-AG comes with a 13mm keyed drill chuck supplied, and is ready to accept MT3 collets for securing a wide range of cutting tools.
--------------------
With sharp direct-to-you pricing that cuts out the middlemen, the Ultimate Baumr-AG Mini Metal Lathe and Mill Drill package is the smart solution for hobbyists and modelers looking to add intricate detail to their next project!

Specification


  • Brand: Baumr-AG
  • Power Plug: Australian Standard
  • Input Voltage: 240V/50Hz
  • Model: BM-LAT07 (Mini Lathe)
  • Power:600W
  • Input Voltage: 240V/50Hz
  • Distance Between Centers: 350mm
  • Swing Over Bed: 180mm
  • Speed (High Gear): 100-3000rpm
  • Speed (Low Gear): 100-1200rpm
  • Swing Over Cross Slide: 65mm
  • Spindle Bore: MT3
  • Tailstock Taper: MT2
  • Spindle Bore: 20mm
  • Cross Slide Travel: 65mm
  • Compound Slide Travel: 55mm
  • LCD Display (RPM): Yes
  • Metric Range of Threads: 0.4-2.0mm (10 Thread Pitches )
  • Chuck Diameter: 80mm
  • Model: BMMDL-07 (Mini Mill Drill)
  • Output Power: 350W
  • Drilling Capacity: 13mm
  • End Mill Capacity: 16mm
  • Face Mill Capacity: 30mm
  • Tilt angle: -45 to +45
  • Max X Axis Table Travel: 220mm
  • Max Y Axis Table Travel: 100mm
  • Max Z Axis without collet: 180mm
  • Spindle Taper: MT #3
  • Throat: 167mm
  • Table Size: 390x92mm
  • Spindle Speed: Low :0~1000 RPM; High: 0~2500 RPM
  • Swing: 324mm
  • Spindle to Table: 292mm
  • Spindle to column: 162mm
  • Work Table Load Capacity: 25kg
  • T-slot size: 12mm
  • Table Size: 390x92 mm
  • Dimensions (L x W x H): 520x510x760mm
  • Assembly Required

IN THE BOX

  • 1 x Baumr-AG Mini Metal Lathe
  • 1 x 60 MT2 Centre
  • 1 x Tool kit
  • 1 x Lubricant bottle
  • 1 x Baumr-AG Mini Mill Drill
  • 1 x 13mm Drill Chuck
  • 1 x Lubrication Bottle
  • 1 x Assembly Kit
  • 1 x User Manual / User Manual is accessible online

SIZE WEIGHT

  • Mini Lathe
  • Carton Weight: 40kg
  • Product Dimensions (W x D x H): 70 x 30 x 30cm
  • Product Weight: 37kg
  • Mini Mill Drill
  • Carton Dimensions (W x L x H): 54 x 48 x 70cm
  • Carton Weight: 60kg
  • Product Dimensions (W x D x H): 51 x 52 x 76cm
  • Product Weight: 50kg

SKU: TOLCOMBMRA07X
