Description
Features:
- Specification compliance: Intel EPS12V
- Forward converter circuit
- High efficiency and reliability for industrial level
- Easy swap connector design
- High reliability ball bearing fan
- Low ripple & noise
- Smart & Silent Fan Control (S2FC)
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100% hi-pot test
- 100% burn in, high temperature cycled on/off
- PFC harmonics compliance: IEC1000-3-2 /EN61000-3-2 standards
Dimension: L270 x W100 x H70mm (10.6 x 3.9 x 2.7)
Fan type: 60 x 60mm
Connectors:Customized modular cables
Electrical Specifications:
- Input frequency: 50 / 60 Hz
- Inrush current, cold start: 100A max.
- Hold up time, full load: 16ms. typical
- Efficiency, 220-240VAC, full load: 83% typical
- Efficiency, 100-120VAC, full load: 80% typical
- Dielectric withstand, input to frame/ ground: 1800VAC, 1sec.
- Dielectric withstand, input to output: 1800VAC, 1sec.
- Line regulation: +/-1% typical
- Load regulation: +/-5% typical
- Cross regulation: +/-5% typical
- Ripple / noise: 1%
- MTBF, full load: >100K hours (Excluding the DC fan)
- Power Factor Correction: Active PFC 99% typical
Safety: CUL, TUV, CB, CCC
EMC: CE, FCC
Package contents:

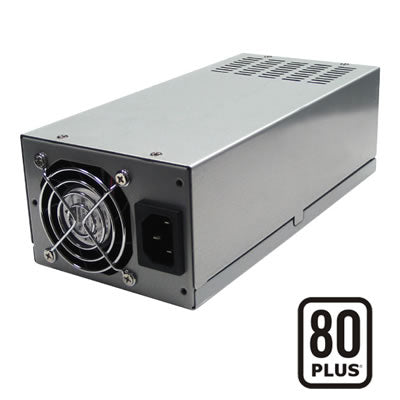

1x SeaSonic 600W Active PFC F0 2U PSU (SS-600H2U)
