Description
SPECIFICATIONS
Technical Specifications | ||
80PLUS ® |
Gold |
|
Cybenetics Efficiency Level |
TBA |
|
Cybenetics Noise Level |
TBA |
|
Form Factor |
Intel ATX 12 V |
|
Dimensions |
140 mm (L) x 150 mm (W) x 86 mm (H) |
|

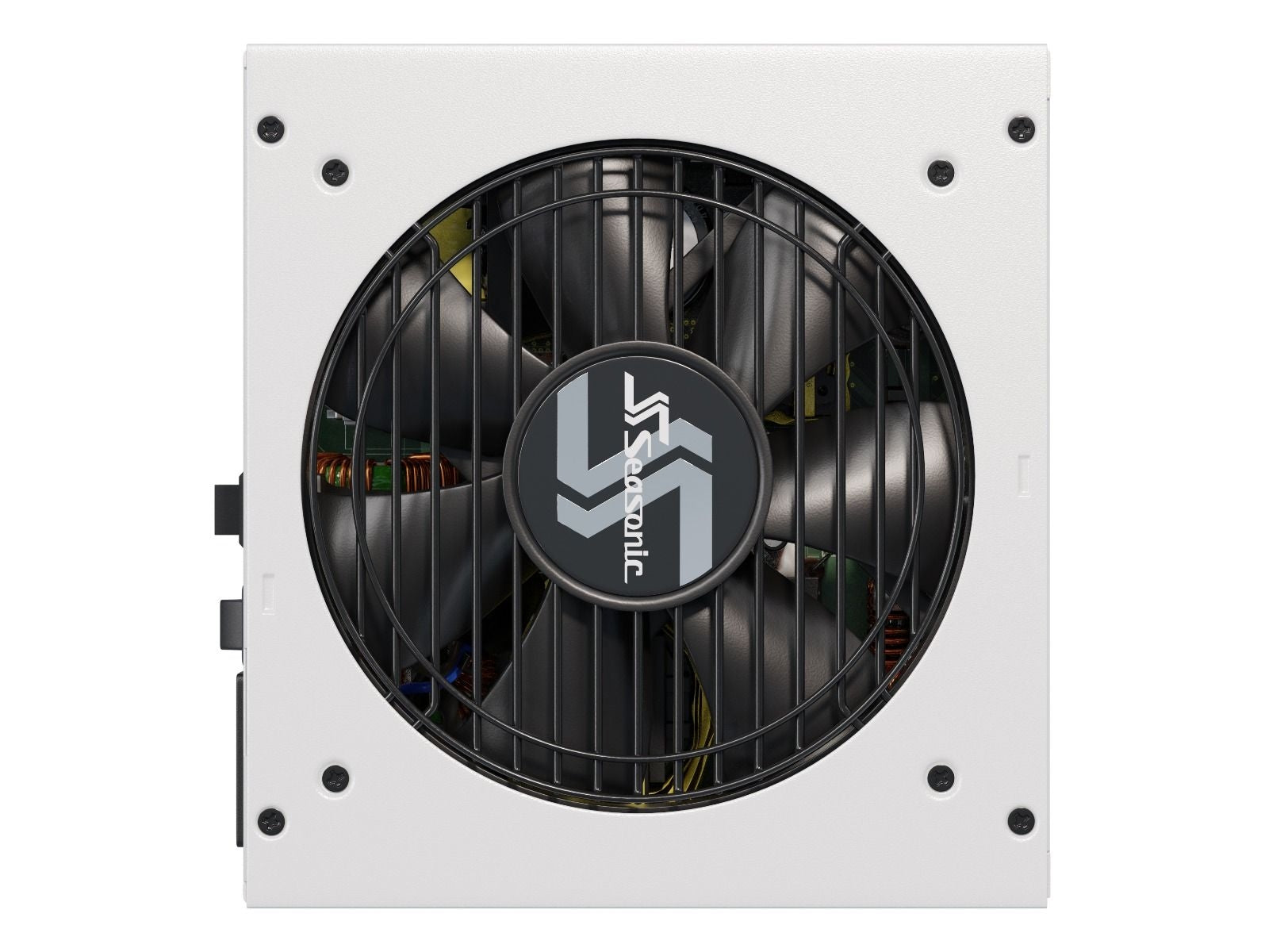

Fan Information |
Fan Size |
120 mm |
Fan Control |
S3FC - Fanless until 30 % load |
|
Fan Bearing |
Fluid Dynamic Bearing |
|
Life Expectancy |
50,000 hours at 40 °C, 15 % - 65 % RH |
|
Cable Information |

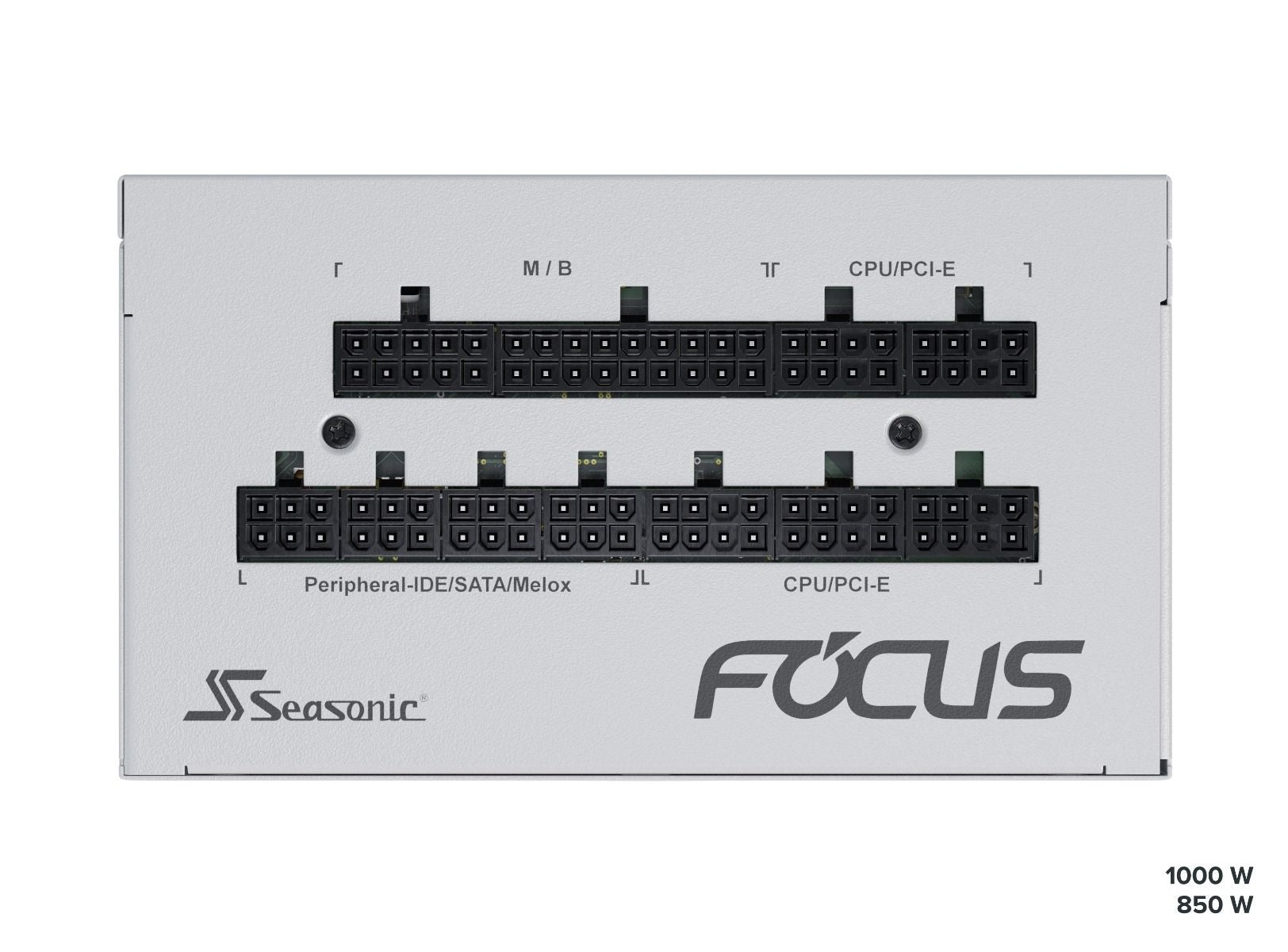

Modularity |
Fully Modular |
Cable type |
Flat cables |
|
Electrical Features |
Operating Temperature |
0 - 40 °C |
MTBF @ 25 °C, excl. fan |
100,000 hours |
|
AC Input |
Full Range |
|
Protection |
OPP, OVP, UVP, OCP, OTP, SCP |
|
Safety and Environmental |
Safety and EMC |
cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
Environmental Compliance |
Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
|
Warranty |
10 Years |
Power Output | ||||||
AC Input |
Voltage: 100 V - 240 V |
|||||
Current: 13 - 6.5 A | ||||||
Frequency: 50 Hz - 60 Hz | ||||||
DC Output |
Rail |
+3.3 V |
+5 V |
+12 V |
-12 V |
+5 VSB |
Maximum Power |
25 A |
25 A |
83 A |
0.3 A |
3 A |
|
125 W |
996 W |
3.6 W |
15 W |
|||
Total continuous power |
1000 W |
