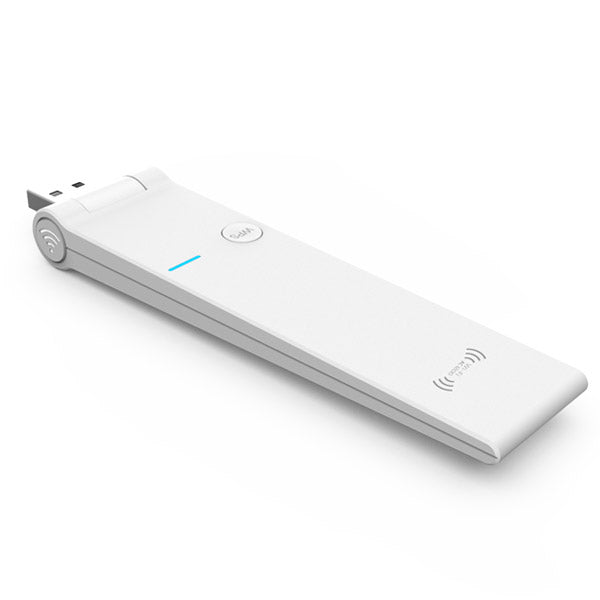

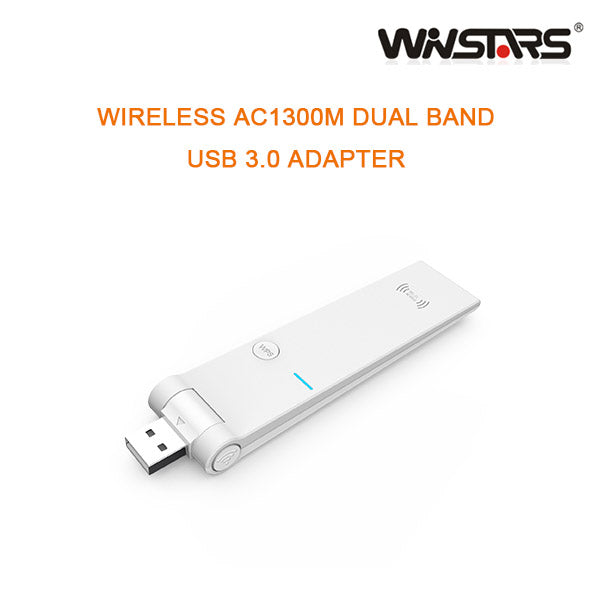

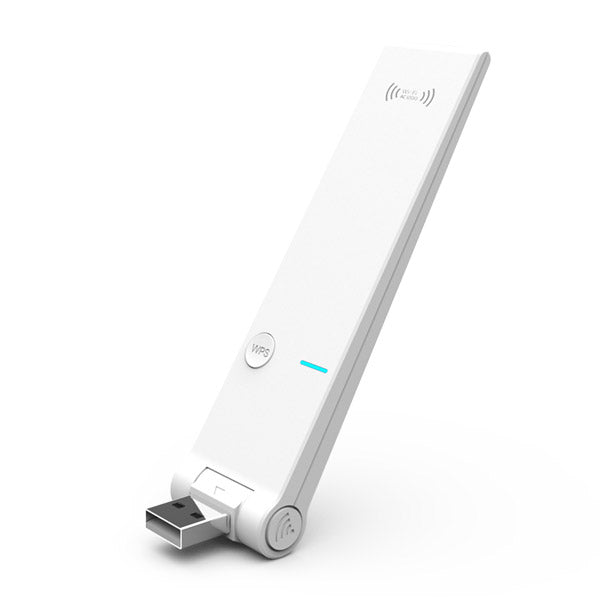

WINSTAR WIRELESS AC1300M DUAL BAND USB 3.0 ADAPTER

Save $8.28

Price:
Sale price$55.30 Regular price$63.58
Stock:
In stock

Estimate shipping

Description

Features

1300 (867+400)Mbps wireless speed

Support 2.4GHz & 5GHz WLAN networks

Dual Band connections for lag-free HD video streaming and gaming

SuperSpeed USB 3.0 port, backward compatible to USB 2.0

Complies with IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards

20MHz & 40MHz & 80MHz bandwidth transmission

OFDM with BPSK, QPSK, 16QAM, 64QAM, 256QAMmodulation

Supports Windows XP / Vista / 7 / 8 / 8.1/10, MAC

Specification

Hardware

Ports: USB 3.0

Button: WPS

LED: 1 X Link/ Active

Chipset:RTL8812AU

Flash: N/A

SDRAM: N/A

Power Supply: USB 5V

Power Plug: N/A

Power Consumption:

Rated Voltage/ requency /current:DC 5V about 500mA

Wireless

Standard:IEEE802.11ac,IEEE 802.11a, IEEE 802.11b,IEEE 802.11g,IEEE 802.11n

Modulation:

11ac\n: 16QAM, 64QAM 128QAM 256QAM with OFDM

11g: BPSK, QPSK, 16QAM, 64QAM, OFDM

11b: DQPSK, DBPSK, DSSS, CCK

Speed:

802.11ac: up to 867Mbps

802.11n: up to 400Mbps

802.11a: up to 54Mbps

802.11g: 54 M

802.11b: 11 M

Frequency band:5GHz and 2.4GHz

Power:

802.11b: 22dBm ± 2 dBm 802.11g: 16dBm ± 2 dBm

802.11n: 15dBm ± 2 dBm 802.11ac: 14dBm ± 2 dBm

Distance:Outdoors 300m, Indoor 100m(According to the actual environment change)

Safely 64/128-bit WEP, AES,TKIP,WPA,WPA2,802.1x,WPA-PSK,WPA2-PSK,MAC, WDS

Environmental

Operating Temperature:0ºC~40ºC

Storage Temperature:-10~70

Relative Humidity(Operational): 10%~90%,noncondensing

Relative Humidity(Storage):10%~90%,noncondensing

Software

Standard Version

RFC768 User Datagram Protocol(UDP)

RFC791 Internet Protocol(IP)

RFC792 Internet Control Message Protocol

RFC793 Transmission Control Protocol(TCP)

bandwidth 20MHz & 40MHz & 80MHz

Wireless Mode 11ac only, 11n only, 11g only & 11b only(option)

System Windows XP / Vista / 7 / 8 / 8.1/10, MAC

Product weight and dimensions

Item Weight: 0.25 KG

Product Dimensions: 98mm L x 28mm W x 10mm (L x W x H)

Package content

1 x Wireless-AC USB3.0 Aapter

1 x Quick Installation

1 x CD driver
